1. Equipped with 24 XLR analog input ports, 8 6.3 Φ Line input ports, and digital gain control;

2. Equipped with 8 XLR/6.3 Φ hybrid bus output ports, 2 main outputs, and 2 control room monitoring outputs;

3. Equipped with full channel+48V phantom power supply;

4. All channel control rooms monitor and output, all channel headphone ports output;

5. Support third-party visualization IoT platform to monitor online status, and support third-party visualization IoT platform to control volume and channel switching functions;

6. Equipped with USB ports for preset saving, loading, and firmware updates;

7. Equipped with one control and debugging network port, it can be used to connect devices such as iPad, Android APP, PC for wired or wireless remote control;

8. Equipped with 2 stereo internal effect processors;

10. Equipped with 13 precision electric 100mm thrusters;

11. Supports 32-bit floating-point digital signal processing;

12. Equipped with one 7-inch color LCD touch screen for graphic viewing and settings;

13. Equipped with a 24 bit, 48/96KHz sampling rate switchable module;

14. Equipped with 24 DSP processing channels;

15. Equipped with digital noise gate, digital compressor/limiter, digital 4-segment full parameter equalizer, sound and image adjustment, delay adjustment, 16 channel automatic mixing, 24 channel RTA real-time spectrum analysis, 24 channel FBC feedback howling suppressor, ≥ 24 channel Duck (dodge) function, 8 user-defined shortcut keys, intercom/microphone input;

16. It has 12 DCA pusher groups and 8 silent groups;

17. Having permission management, locking, and changing device information;

18. Equipped with one DANTE network audio interface, it can support 24 channels of digital transmission after installation;

19. Equipped with an I/O dual track sound card; Specially designed professional digital recording sound card, convenient for users to record through computer software;

20. Compressor threshold range -83dBu ± 20dBu;

21. Frequency response 20Hz~20KHz at 0dBu ± 2dBu;

22. Distortion<0.03% at 0dBu 1KHz;

23. Digital gain: 0dBu~50dBu;

24. Signal to noise ratio of 108dB;

25. Maximum input level+20dBu ± 0.5dBu;

26. Phantom power supply+48VDC;

27. Output maximum level+20dBu ± 0.5dBu;

28. Monitor output maximum level+15dBu ± 0.5dBu;

29. Crosstalk input to output) -88dBu;

30. Adjacent channels -87dBu;

31. The threshold range of the noise gate is -84dBu~± 19dBu;

32. Microphone input 6.8K Ω;

33. Line input line input 75K Ω;

34. All outputs are 120 Ω;

35. Working temperature range: 0~40 ℃;

36. Storage temperature range -20 ℃~45 ℃;

37. ADC sampling byte of 32 bits, dynamic range of 113dB;

38. DAC sampling byte 24 bits, dynamic range 113dB;

39. Internally processing 32-bit floating points;

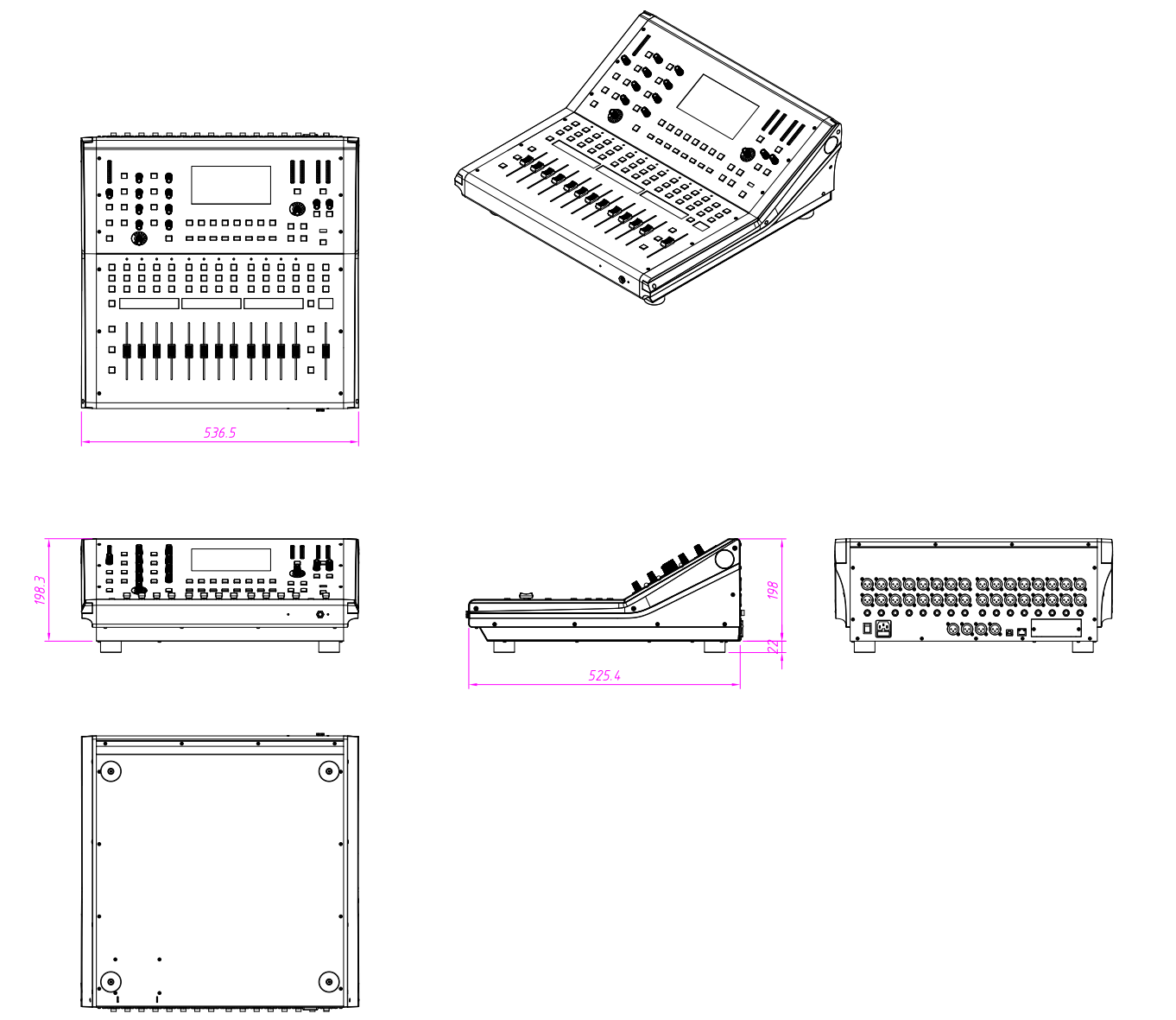

40. Dimensions: Width 536mm * Depth 525mm * Height 198mm
