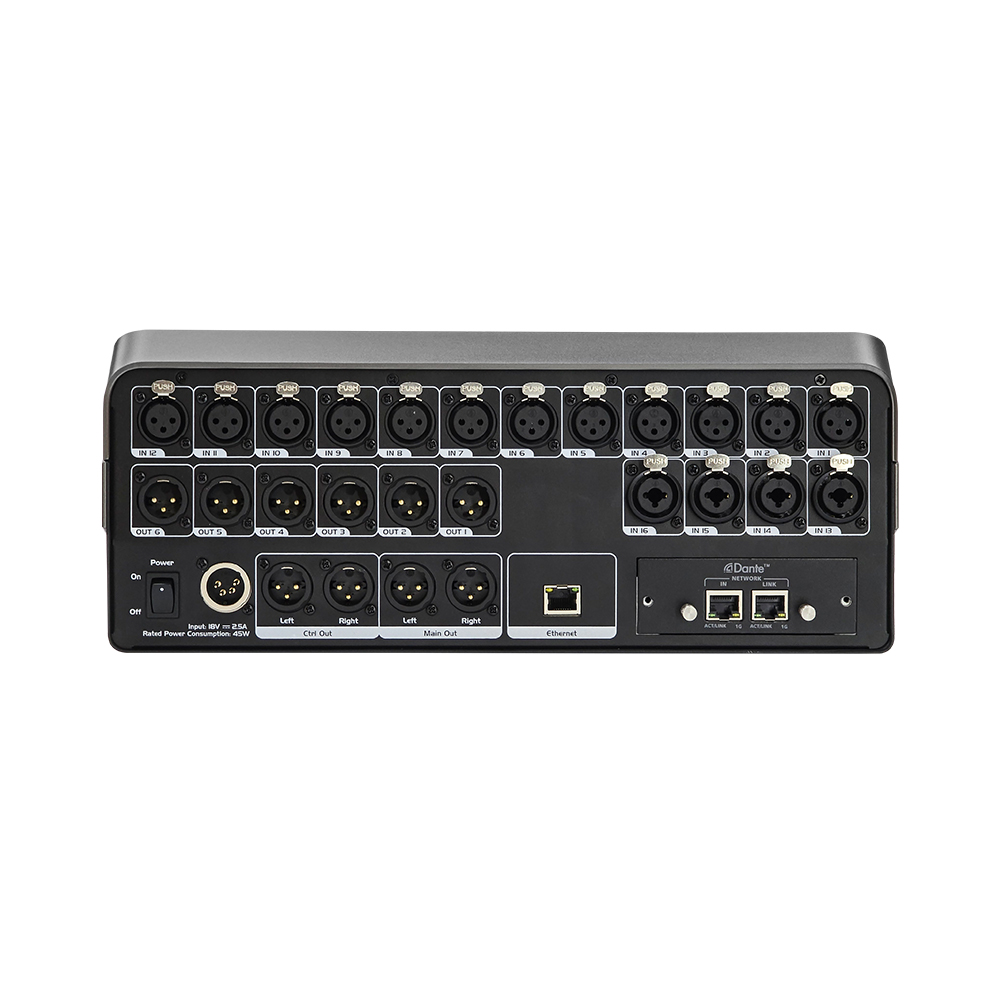

1. 12 XLR inputs+4 hybrid seat inputs+1 Bluetooth stereo input;

2. 6-way XLR bus output

3. 1 channel left and right main output, 1 channel left/right monitoring output, 1 channel stereo headphone output

4. 1 road network entrance, used to connect PC/iOS/Android operating system control APP

5. 1 expansion interface, optional DANTE32S network audio module or USB recording module, can be installed on-site

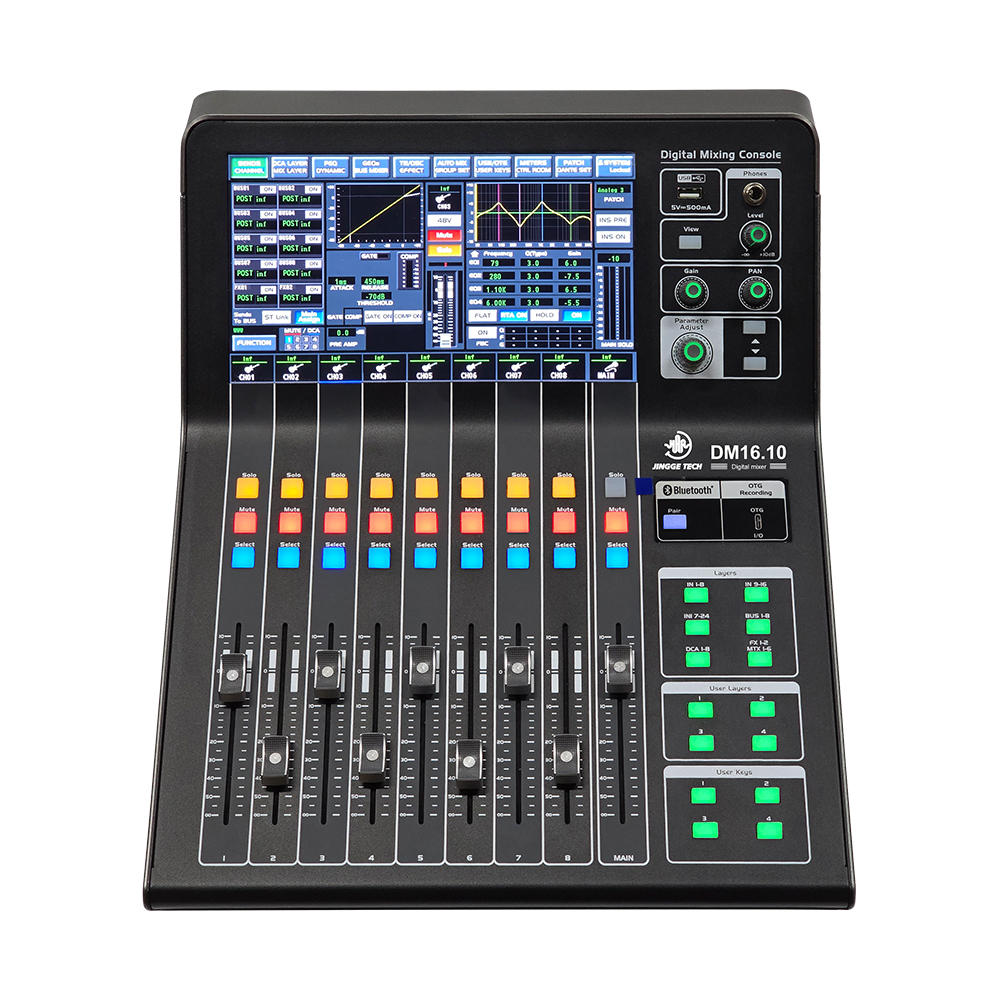

6. 10 inch central control touch screen with 1024 * 600 resolution

7. 1 USB port for preset save/load and software updates

8. 9 100mm large stroke electric stepper thrusters to control volume

Stereo Bluetooth player, USB TAPE-C high fidelity sound card, supports OTG protocol, supports mobile phone charging

9. The illuminated button makes recognition easier and more convenient

10. Digital functions

11. Digital gain control/phantom power control

12. 16 digit input/output

13. 2 digital effectors

14. 24 bit, 48/96KHz sampling rate

15. Noise gate/compressor/Voltage limiter

16. 4-segment full frequency parameter equalizer and 31 segment graphic equalizer

17. Automatic mixing/real-time audio analysis/automatic howling suppression/matrix audio/automatic gain control

Sound phase/phase reversal/time delay

18. 8-digit grouping control for FADER grouping/silent grouping

19. Programming, saving, loading, and copying functions

20. Locking and unlocking functions/password management
