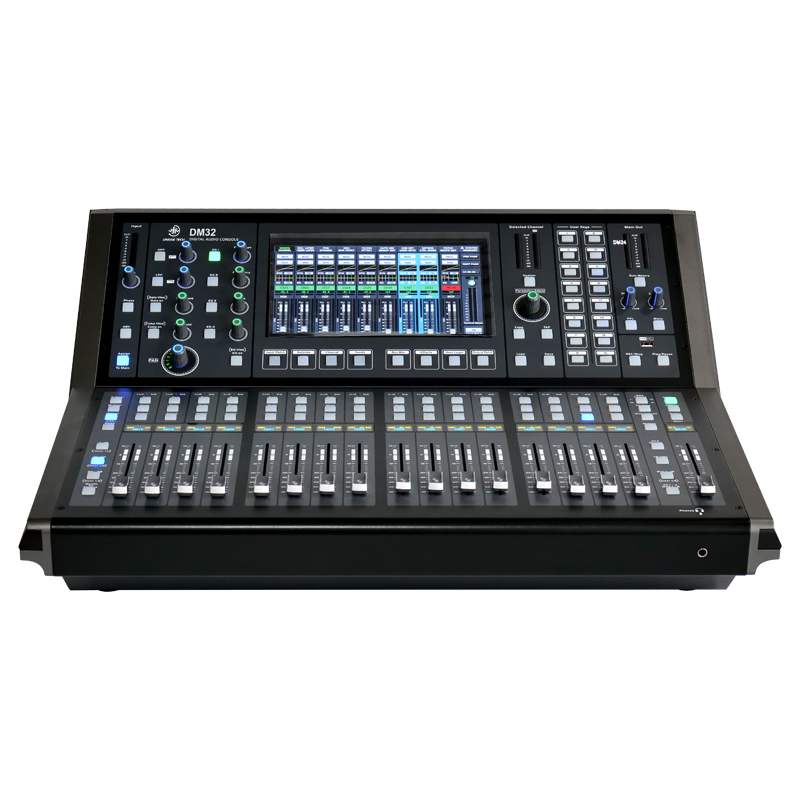

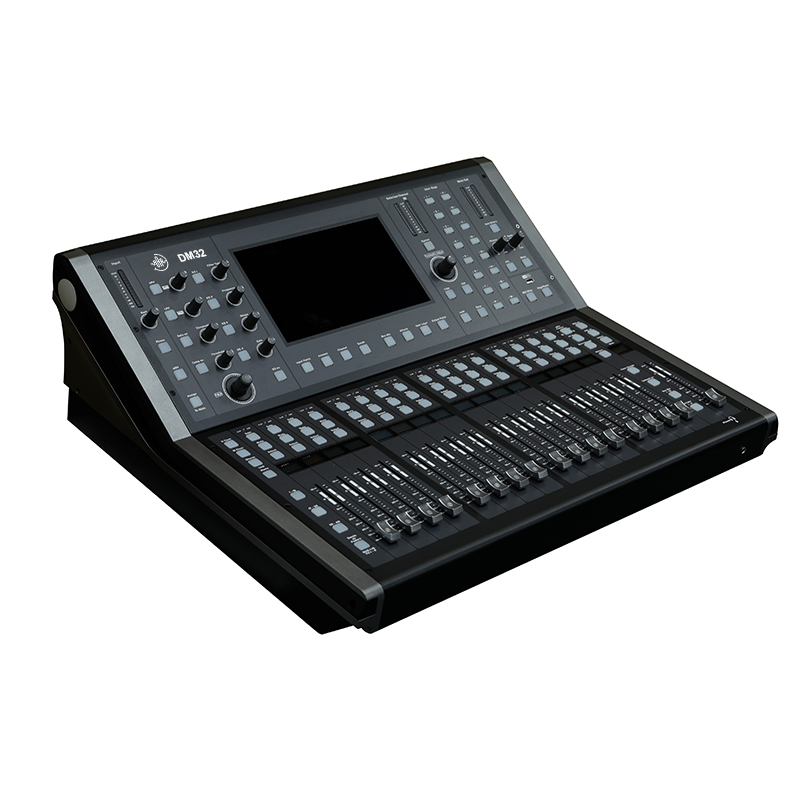

1. Configure 10.1 ultra large LCD OLED high-definition capacitive touch display screen and face the user at the optimal angle;

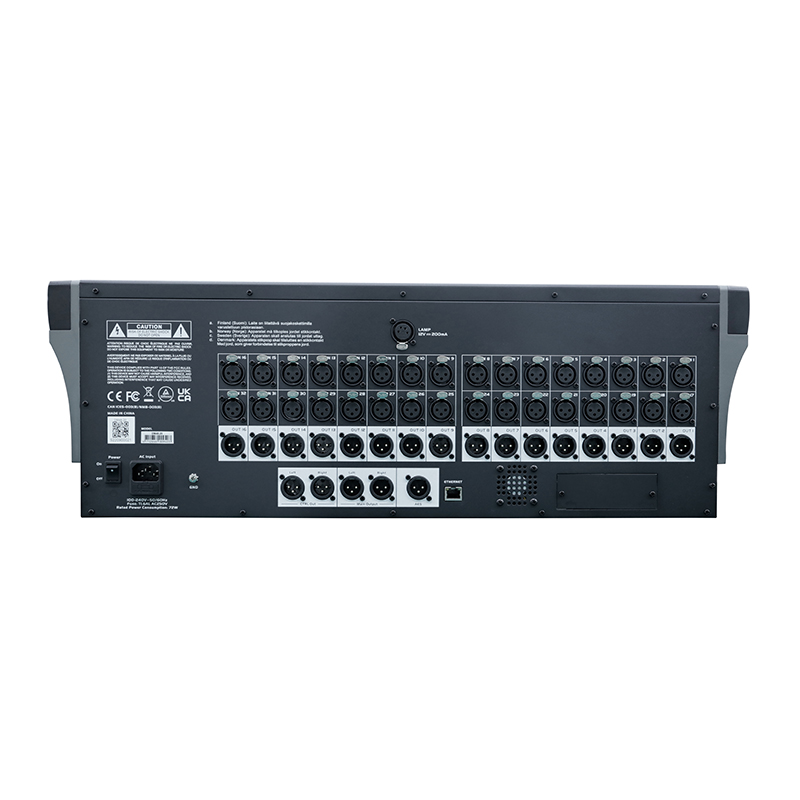

2. Equipped with 32 channel inputs; 2 main outputs, 2 monitoring outputs, and 1 AES digital output;

3. Equipped with 16 formation outputs; 1 headphone output;

4. Equipped with 4 built-in digital effectors that can be stacked for use;

5. Equipped with a 4-stage parametric equalizer; DSP functions such as phase and 4 sets of TAP delay effects physics simulator;

6. Having 16 Group DCA formations;

7. At least 4 sets of physical simulators with TAP delay effect;

8. Equipped with one set of sampling rate 48KHz/96KHz selection modules;

9. The device has a factory selectable Chinese and English operating interface;

10. Equipped with 48 intelligent gain channels that support Auto Mixer; The single input channel has gain and+48V phantom power supply, and each channel can be independently switched on and off;

11. Equipped with 48 input signal RTA spectrum analysis channels;

12. Equipped with 20 output signal RTA spectrum analysis channels;

13. Having a strong switching channel for Talk back temporary signals;

14. Non fixed Dante digital audio transmission interface

15. Has 4 pink noise test signal frequency options;

16. Equipped with an I/O dual track sound card; Specially designed professional digital recording sound card, convenient for users to record through computer software;

17. Featuring 17 sets of 31 segment graphic equalizers and 24 sets of scene preset modes;

18. Featuring 13 customizable electric FADERs with a movement speed of 100mm;

19. Equipped with UTP interface; By combining software and hardware to design a one click delivery function, users can quickly switch between input and output;

20. Adopting a multifunctional LCD screen, users can name each channel;

21. Remote control is possible: through electronic devices such as PC or iPad;

22. Remote signal transmission can be achieved through DANTE; Humanized design of non fixed Dante interface, convenient for users to choose whether they need ultra long distance transmission;

23. Equipped with the ability to customize switching between engineer and user permissions; Combining advanced design concepts to comprehensively design more convenient, efficient, and practical digital functions for users;

24. Adopting primary and backup chip technology to ensure that equipment does not experience downtime to the greatest extent possible;

25. The microphone amplification module adopts ASHLY series high-quality amplification circuit;

26. By combining software and hardware to design a one click delivery function, users can quickly switch between input and output;

27. Optimize DSP data to make vocals clean, low-frequency deep and thick; Mid frequency rounded, sweet and full; High frequency is soft and delicate;

28. Suitable for commercial, government, enterprise unit conference rooms, sports venues, and performances.

Parameters:

1. Main output frequency response range: 20Hz~20KHz/0dBu ± 1.5dB;

2. Main output distortion:<0.01%;

3. Gain range: 0dB~50dB;

4. Signal to noise ratio: 107dB;

5. Maximum input level:+20dBu;

6. Phantom power supply:+48V DC;

7. Maximum level of grouping output:+20dBu;

8. Maximum headphone output level:+20dBu;

9. System crosstalk: Input and output -88dBu; Adjacent channels -85dBu;

10. Noise: -88dBu;

11. Noise gate: threshold range: -84dBu~+20dBu; Inhibition time: 0.5ms~200ms; Release time: 10ms~1s;

12. Voltage limiter: threshold range: -30dBu~+20dBu; Inhibition time: 10ms~150ms; Release time: 10ms~1s;

Ratio: 1:1~10:1

13. Gain range: 0dB~+24dB;
