1. Adopting a nano crystal high-efficiency, environmentally friendly, and radiation resistant power supply system greatly reduces the harm of ionizing radiation to the human body while improving the efficiency of the power amplifier;

2. By optimizing the power supply system, the delicacy of mid to high frequency sounds and the density of low frequencies have been significantly improved, resulting in a more delicate and sweet human voice and a more robust and heavy bass;

3. This device is equipped with four sensitivity options to better solve the problem of inconsistent audio signal strength for users, and can achieve the same level of performance regardless of any audio source;

4. The circuit design of this machine has been optimized, with the maximum sensitivity adjusted to 2.19V to avoid damage to the backend system caused by strong signals such as musical instruments and current noise;

5. The appearance design is a fully heat dissipating panel, which avoids system protection caused by environmental overheating and maximizes system stability;

Parameters:

1. Installation space: 2U

2. Rated power 8 Ω: 2 × 850W

3. Rated power 4 Ω: 2 × 1200W

4. Frequency response: 20Hz~20KHz;

5. Harmonic distortion:<0.03%;

6. Voltage gain: 36dB;

7. Sensitivity (8ohms 1KHz): 0.775v/1.4V/26dB;

8. Separation degree 20Hz~20KHz rated power 8 Ω: ≥ 70dB

9. Input impedance: 20k Ω balanced input, 10k Ω unbalanced input;

10. Signal to noise ratio:>108dB;

11. Damping coefficient (8ohms 1KHz): ≥ 750

12. Conversion rate: ≥ 55V/us;

13. Input interface: XLR balanced type;

14. Cascade interface: Euroblock balanced type;

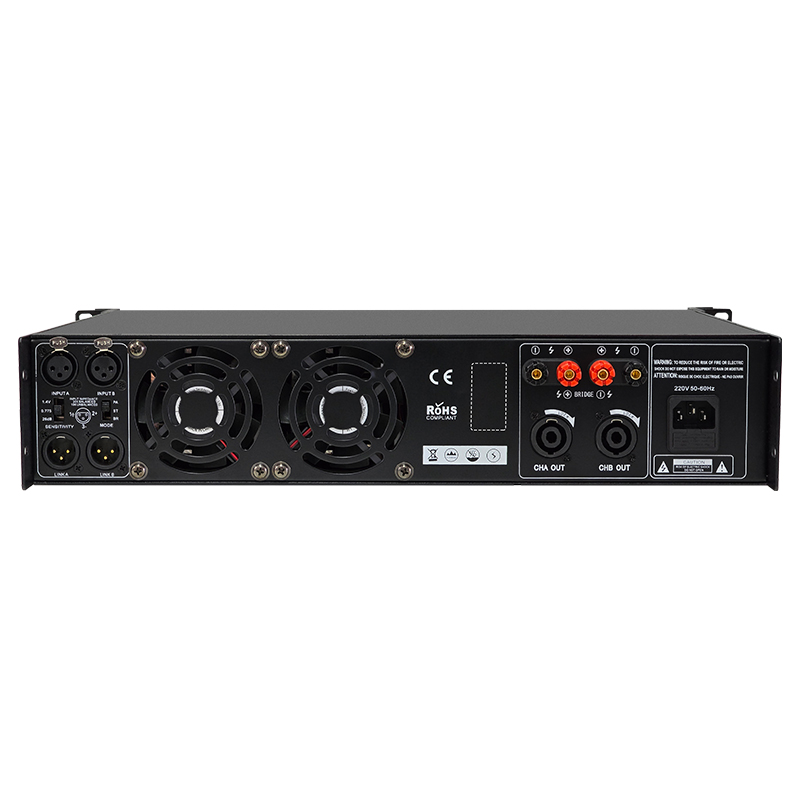

15. Output interface: professional speaker socket and dual color wiring terminal;

16. Protection: DC protection, ultra-high frequency protection, short circuit protection, overload protection, power on/off protection, temperature protection;

17. Physical dimensions (depth x width x height): 350mm x 485mm x 88mm
