1. Adopting a compressed box structure to enhance the density of mid frequency sound, resulting in fuller, clearer and more penetrating vocals;

2. High pitched speaker unit: 44mm high-temperature resistant voice coil, ferrite magnet magnetic circuit design, composite material ball top vibrating diaphragm;

3. Bass speaker unit: 65mm high-temperature resistant voice coil, ferrite magnet magnetic circuit design

4. Box: Adopting Bass reflex box structure to reduce sound wave interference; High density medium fiber board, black dot spray paint/M8 lifting holes, black iron mesh, built-in handle x1;

5. Iron mesh: black powder spray painted and equipped with acoustic filter screen

6. Suitable for meeting rooms, lecture halls, and other places with high requirements for human voice;

Parameters:

1. Continuous power: 300W, peak power: 600W

2. Speaker impedance: 8 Ω

3. Frequency response (-10dB): 55Hz-20KHz

4. Sensitivity: 94.5dB

5. Maximum sound pressure level 1M (calculated value): 120dB

6. Coverage angle (HxV): 90 ° x 60 °

7. Frequency division point: 1.8kHz 18dB/OCT frequency divider design

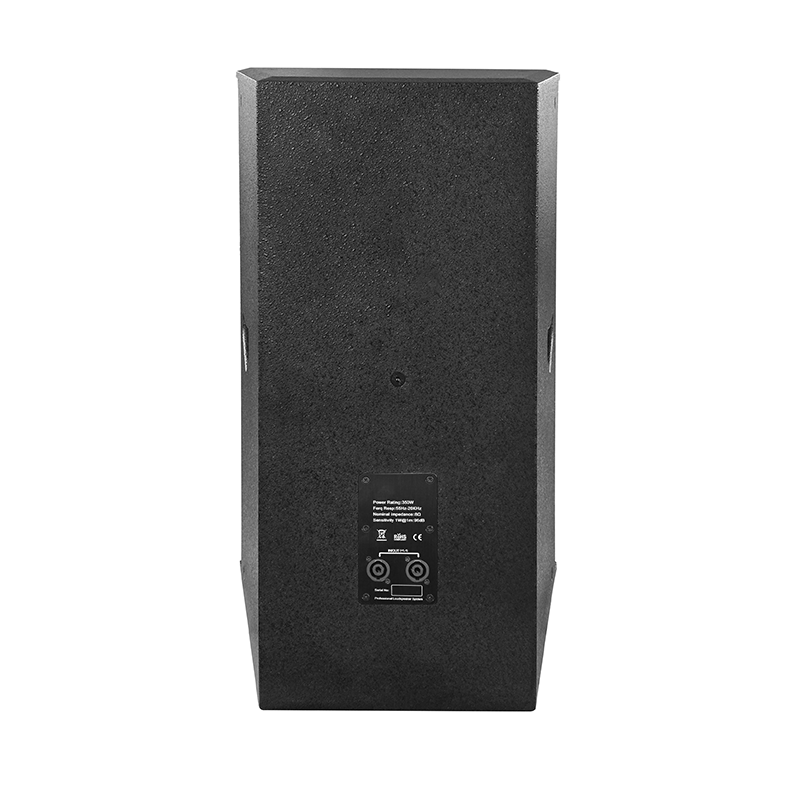

8. Wiring terminal: SPEAKON socket x2

9. Physical dimensions (mm): Height 680x Width 416x Depth 410

10. Net weight: 25Kg
