1. The box adopts a design scheme of plastic integrated molding, with the sealing degree of the box reaching its limit, accurate calculation of the box volume, and more robust and high-definition sound;
2. The high-frequency speaker unit adopts neodymium magnetic speakers, which are more delicate in the middle and high frequencies, with clear and sweet vocals;
3. The designer has made the greatest consideration in terms of aesthetics and completeness, optimizing the appearance and weight of the product to the greatest extent possible while ensuring beautiful sound quality. Users do not need to worry too much about building load-bearing issues during use, which greatly improves safety without affecting the overall decoration style;
4. The lightweight and aesthetically pleasing design style not only meets the needs of users, but also caters to the strategic requirements of the country for energy conservation and environmental protection in sound reinforcement projects;
5. In terms of construction, due to its extremely light weight, it greatly saves construction time and workload;
Parameters:
1. Speaker type: Dual 3-inch linear array speaker
2. Power: Music power: 40W, peak power: 80W
3. Frequency response range: 100Hz-20KHz (-10dB)
4. Sensitivity: 90dB
5. Maximum sound pressure level: 106dB
6. Unit configuration: 2x3 "bass unit, 3x1" treble unit
7. Impedance: 8 Ω
8. Coverage angle: horizontal 100 °, vertical 10 °
9. Adjustable angles: 0 °, 1.5 °, 3 °, 4.5 °, 6 °, 8 °, 10 °
10. Frequency division point: 2.5KHz
11. Input interface: 2 SPEAKON interfaces
12. Mesh cover: 1.0T steel mesh+foam

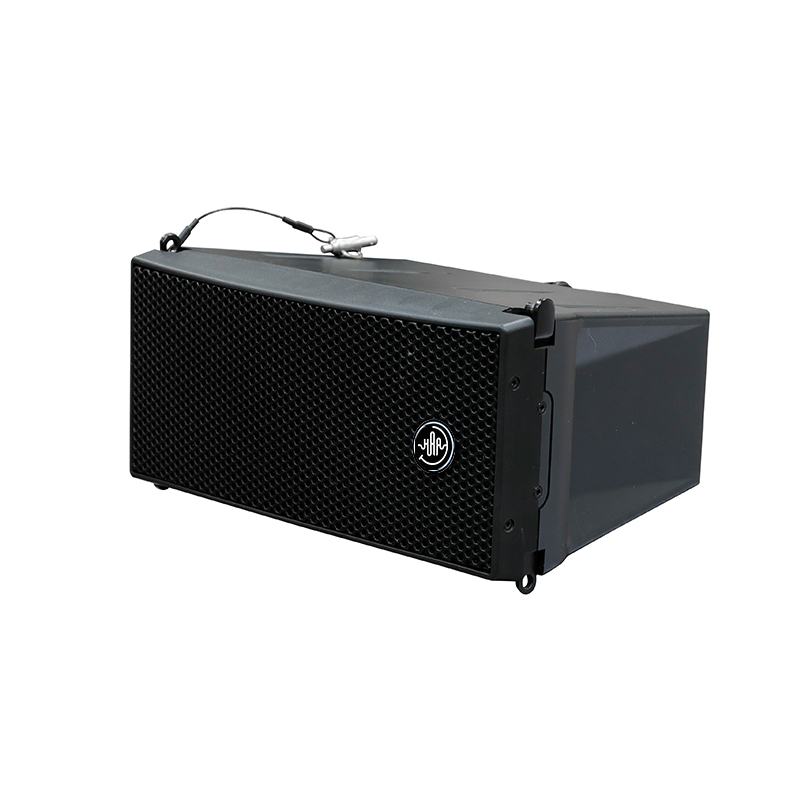

13. Box appearance: black plastic box, steel mesh and foam, with mounting brackets on both sides, waterproof coating
14. Dimensions (height x width x depth): 124mm x 265mm x 195mm
15. Weight: 3.2Kg
