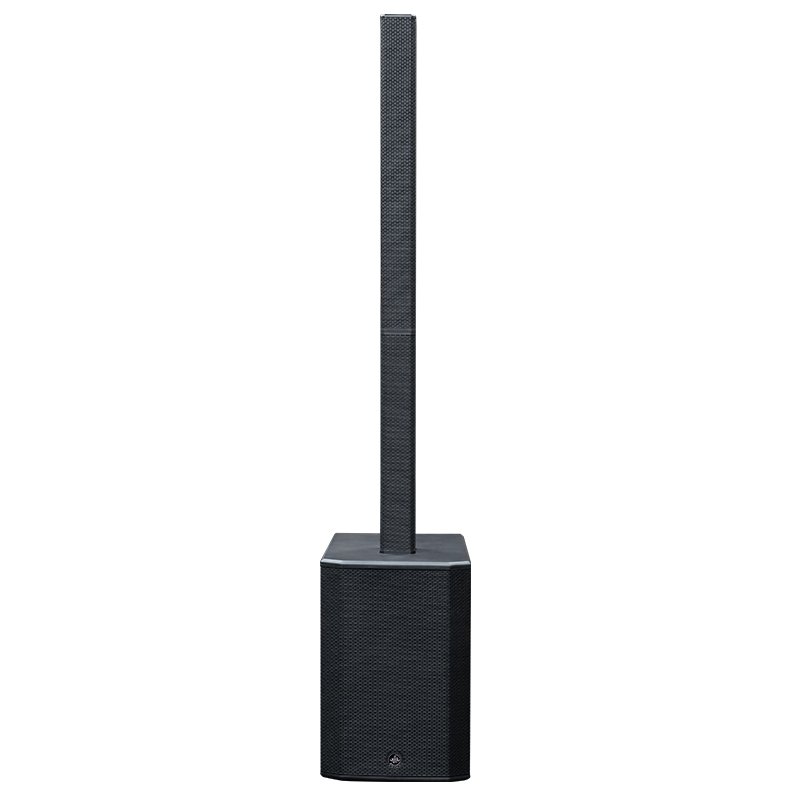

Array system technical parameters:

1. The system consists of a single 15 inch active speaker system, 12 3.5-inch mid low frequency units, and 5 1-inch neodymium magnetic tweeters;

2. Frequency response: 40Hz-20KHz (-10dB);

3. Class D total amplifier power: 2000W continuous/4000W program/8000W peak;

4. Maximum sound pressure level @ 1M: 134dB;

5. Frequency division: 220Hz;

6. Directionality (-6dB): 120 ° horizontal;

7. Assembly dimensions (width x height x depth): 430 x 2170 x 610mm (16.93 '' x 85.43 '' x 24.02 '');

8. Net weight: 48 Kg (105.8 Ibs);

SUB Bass Technical Parameters:

1. Equipped with one 15 inch active subwoofer unit;

2. Frequency response: 50Hz-210Hz;

3. Class D total amplifier power: 2000W continuous/4000W program/8000W peak 8Ohms;

4. Amplifier and subwoofer: 1000W Continuous/2000W Program/4000W Peak, Class D @ 8 Ohms;

5. Amplifier, satellite: 500W+500W continuous/2000W program/4000W peak class D @ 8 Ohms;

6. Equipped with overheat protection, short circuit protection, and digital compression;

7. Connector: Input: 1 x Combo-XLR&1/4 ", Output: 1 x XLR Thru&MXout;

8. External controls: master volume, sub volume, power supply, signal, limiter, protection LED indicator light, Bluetooth pairing and TWS connection switch and LED indicator light;

9. Support external wireless Bluetooth app debugging, support for mobile phones, tablets, Android/iOS;

10. Support B, M, T, 3-segment EQ debugging, BASS-GAIN gain adjustment, and support bypass comparison;

11. Support Mute mute, Save/Load to save and load;

12. Power supply: 110V-240V~50/60Hz;

13. Box structure: plywood cabinet, wear-resistant black paint, metal iron mesh with cotton lining inside, rubber foot pads, integrated side handles;

14. Dimensions (W x H x D): 430 x 630 x 610mm (16.93 '' x 24.80 '' x 24.02 '');

15. Net weight: 35 Kg (73.85 Ibs);

BM Technical Parameters

1. System type: 3.5 "passive full range speaker system;

2. Output power: 180W continuous, 360W program, 720W peak;

3. Frequency response: 150Hz-20kHz -6dB;

4. Impedance: 8 Ω;

5. Unit specifications: 6 x 3.5 '' subwoofer, 1.0 '' (25.4mm) voice coil;

6. Connector: 4-pin intelligent installation and connection;

7. Appearance structure: aluminum box, metal mesh, wear-resistant spray paint;

8. Dimensions (W x H x D): 103 x 650 x 130mm (4.05 '' x 25.59 '' x 5.11 '');

9. Net weight: 5.9Kg (13.0 Ibs);

TP technical parameters:

1. System type: 3.5 "2-channel passive crossover speaker system;

2. Output power: 180W continuous, 360W program, 720W peak;

3. Frequency response: 150Hz-20kHz -6dB;

4. Impedance: 8 Ω;

5. Unit specifications: 6 x 3.5 '' subwoofer, 1.0 '' (25.4mm) voice coil;

6. Convertible treble: 5 x 1 '' neodymium driver, 1.0 '' (25.4mm) voice coil;

7. Connector: 4-pin intelligent installation and connection;

8. Dimensions (W x H x D): 103 x 890 x 130mm (4.05 '' x 35.03 '' x 5.11 '');

9. Net weight: 7.2Kg (15.9 Ibs);
