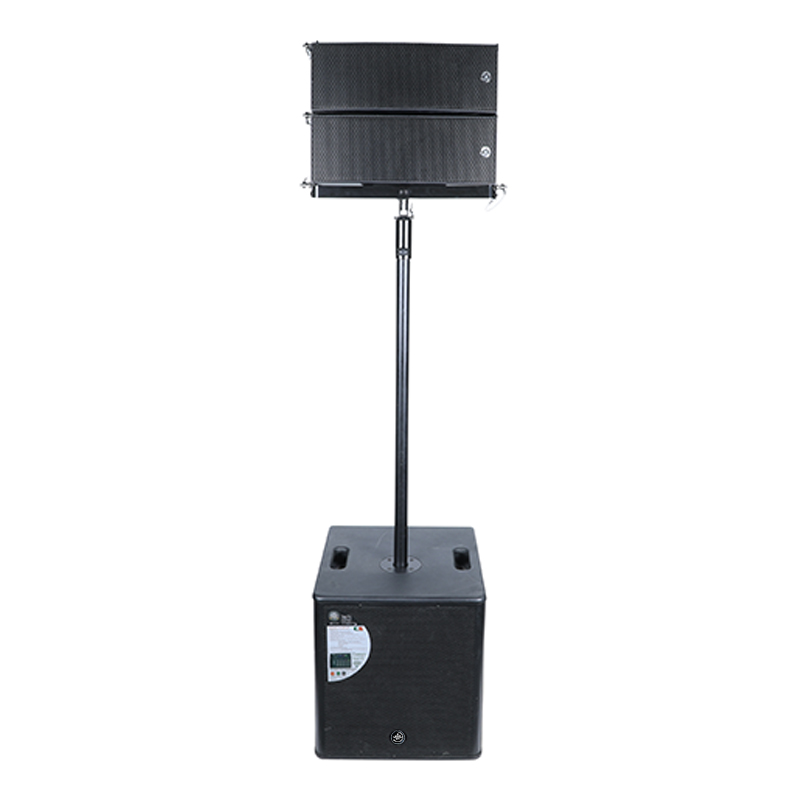

1. This set of audio equipment is professionally designed for use in low rise multifunctional halls, conference rooms, and lecture halls, completely solving the problem of not being able to install professional sound reinforcement in high and low rise areas;

2. The full frequency linear array speaker adopts a design scheme of plastic integrated molding, with the sealing degree of the box reaching the limit, accurate calculation of the box volume, and more robust and high-definition sound;

3. The high-frequency speaker unit adopts neodymium magnetic speakers, which are more delicate in the middle and high frequencies, with clear and sweet vocals, suitable for use in multifunctional halls of enterprises and institutions;

4. This set provides the best solution for mobile users, with a simple and fast system setup, remote outdoor sound reinforcement, a wide range of applications, and a precisely tuned system configuration that is extremely suitable for mobile performances;

5. The audio system adopts low-energy and high-efficiency digital amplifier modules, which provide ultra-high stability while responding to the national strategic direction of environmental protection and energy conservation;

Technical parameters:

1. Speaker type: Dual 5-inch linear array speaker

2. Power: Continuous power 240W, peak power 480W

3. Frequency response range: 95-20KHz ± 3dB

4. Maximum sound pressure level: 124dB

5. Unit configuration: 2 × 5 "subwoofer, 1.3" high-temperature resistant voice coil, 1 × 1 "tweeter, 1" high-temperature resistant voice coil

6. Impedance: 8 Ω

7. Coverage angle: horizontal 100 °, vertical 5 °

8. Adjustable angle: 0 ° -15 °

9. Frequency division point: 2.3KHz

10. Input interface: 2 SPEAKON interfaces

11. Mesh cover: 1.0T steel mesh+foam

12. Box appearance: black plastic box, steel mesh and foam, with mounting brackets on both sides, waterproof coating

13. Dimensions (height x width x depth): 161 x 430 x 304mm

14. Weight: 8Kg

SOHO S12FLX 12 inch active linear array subwoofer with two speakers

characteristic:

1. Can input instrument signals

2. Equipped with signal output interface

3. Can be remotely debugged through network interface

4. Built in digital amplifier module

5. The logo on the mesh cover is equipped with switchable LED indicator lights, making it easy to distinguish whether it is in the on state or not

6. Box structure handle, with bracket holes on the top, can be paired with full range speakers

Parameters:

1. Speaker type: 12 inch large dynamic subwoofer

2. Power amplifier: continuous power 1000W, peak power 2000W

3. Frequency response range: 50-150Hz ± 3dB

4. Maximum sound pressure level: 127dB

5. Unit configuration: 12 "bass unit, 2.5" voice coil

6. DSP: including gain, equalizer, and limiter functions

7. Input: 2 MIC/LINE inputs, 2 RCA inputs, 1 THRU output

8. Output: 2 stereo outputs

9. Mesh cover: 1.0T steel mesh+foam

10. Box appearance: 18mm birch plywood, black spray paint, steel mesh and foam, two handles on both sides, waterproof coating

11. Dimensions (height x width x depth): 420 x 430 x 500mm

12. Weight: 25Kg
