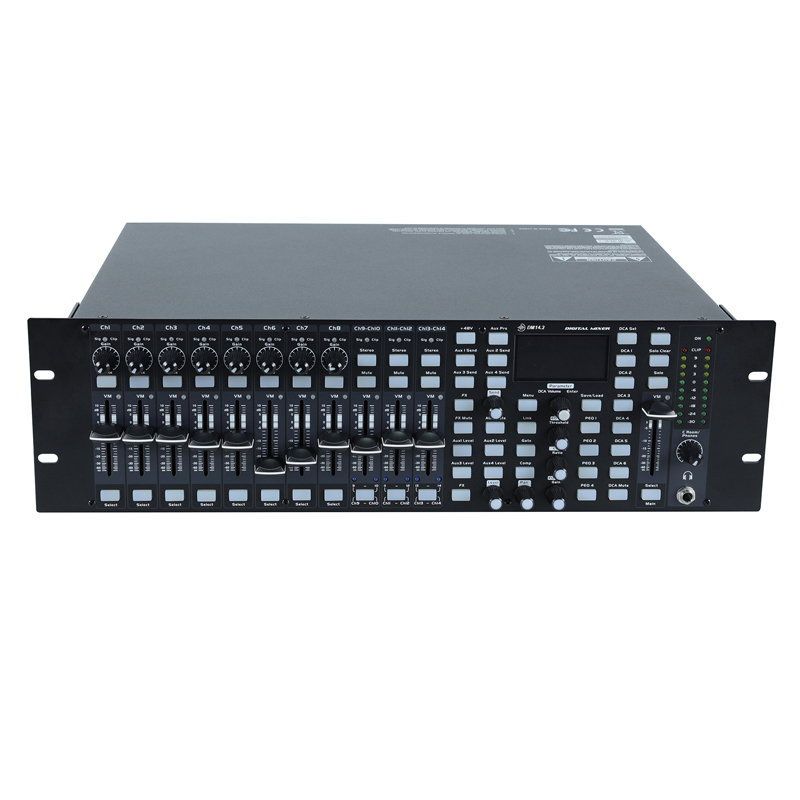

1. A rack mounted digital mixing console with 14 input channels and 4 output groups;

2. Equipped with a non fixed Dante interface, it is possible to choose whether ultra long distance transmission is required;

3. Equipped with a feedback suppression module, it minimizes the occurrence of howling in areas with unfavorable acoustic environments to the greatest extent possible;

4. Equipped with a dodge module, users can automatically adjust the gain ratio when mixing vocals and music;

5. Support primary and backup chip technology to ensure that devices do not experience downtime to the greatest extent possible;

6. The microphone amplification module adopts ASHLY series high-quality amplification circuit;

7. By optimizing DSP data, the human voice is made clean, with deep and thick low frequencies; Mid frequency rounded, sweet and full; High frequency is soft and delicate;

8. Combining advanced design concepts to comprehensively design more convenient, efficient, and practical digital functions for users;

9. Equipped with balanced MIC input channels: 8 channels;

10. Equipped with stereo input channels: 6 channels;

11. Having MAIN output channels: 2 channels;

12. Equipped with AUX output channels: 4 channels;

13. Equipped with headphone output channel: 1 channel;

14. Equipped with DSP built-in effects: 1 set;

15. Having Group DCA grouping: 6 groups;

16. Equipped with Auto Mixer intelligent gain channel: 14 channels;

17. Equipped with FBC feedback suppression module: 14 sets;

18. Equipped with Duck evasion module: 14 sets;

19. Equipped with non fixed Dante digital audio transmission interface: 1 channel;

20. Equalizer with 31 segments: 5 sets;

21. OLED screen with dot matrix display: 128 × 64;

22. Equipped with UTP interface: 1;

23. It has basic functions such as frequency divider, voltage limiter, equalizer, phase, delay, and replication;

24. Scene presets: 24 sets;

25. The single input channel has gain and+48V phantom power supply, and each channel can be independently switched on and off;

26. Remote control is possible: through electronic devices such as PC or iPad;

27. Remote signal transmission can be achieved through DANTE;

28. The device has module interfaces that can be connected to multi track recording modules, DANTE transmission modules, etc;

29. Parameters:

1) Main output frequency response range: 20Hz~20KHz/0dBu ± 1.5dB;

2) Main output distortion:<0.01%;

3) Gain range: 0dB~50dB;

4) Signal to noise ratio: 107dB;

5) Maximum input level:+20dBu;

6) Phantom power supply:+48V DC;

7) Maximum level of grouping output:+20dBu;

8) Maximum headphone output level:+20dBu;

9) System crosstalk: Input and output -88dBu;

Adjacent channels -85dBu;

10) Sampling rate: 48KHz;

11) Parameter equalizer: 4 segments;

12) Noise: -88dBu;

13) Noise gate:

Threshold range: -84dBu~+20dBu;

Inhibition time: 0.5ms~200ms;

Release time: 10ms~1s;

14）Voltage Limiter：

Threshold range: -30dBu~+20dBu;

Inhibition time: 10ms~150ms;

Release time: 10ms~1s;

Ratio: 1:1~10:1

15) Gain range: 0dB~+24dB;

16) Digital Audio:

ADC dynamic range: 114dB

DAC dynamic range: 114dB

17) Internal processor: 32-bit Bit

18) Impedance:

Microphone input: 3.8K Ω;

Line input: 75K;

All other outputs: 240 Ω;

19) Operating free air temperature range: 0 ℃~40 ℃;

20) Storage temperature range: -20 ℃~45 ℃; "
